Product Description:
| Innolux G104XCE-LM1 Mechanical Details |
| Pixel Features | Pixel Format | 1024(RGB)*768, XGA | Dot Pitch | 0.0685*0.2055 (H*V) |
| Configuration | RGB Vertical Stripe | Pixel Pitch | 0.2055*0.2055 mm (H*V) [123PPI] |
| Mechanical Size : | Display Area | 210.4*157.8 mm (H*V) | Outline Dim. | 215.4*161.8 mm (H*V) |
| Outline Dim. | 238.6*175.8 mm (H*V) | Outline Depth | 6.0/7.97 (Typ./Max.) mm |
| Outline Features : | Form Factor | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio | 4:3 (H:V) | Shape Style | |
| Holes & Brackets : | Face mounting holes (4- Φ2.8) on left, right slugs |
| Other Features : | Weight | 280/291g (Typ./Max.) | Surface | Antiglare |
| Innolux G104XCE-LM1 Optical Details |
| Basic Information : | Brightness | 350 cd/m² (Typ.) | Contrast Ratio | 1000:1 (Typ.) (Transmissive) |
| Viewing Angle | 88/88/88/88 (Typ.)(CR≥10) | Optical Mode | AAS, Normally Black, Transmissive |
| Viewing Direction | Symmetry | Response Time | 13/12 (Typ.)(Tr/Td) ms |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Color Numbers | 262K/16.2M (6-bit / 6-bit + FRC) |
| Color Temperature | 6485K | Uniformity | 1.25/1.39 (Typ./Max.)(5 points) |
| 1931 Color Gamut : | NTSC Ratio | 72% | sRGB | 95% coverage |
| Adobe RGB | 73% coverage | DCI-P3 | 75% coverage |
| Rec.2020 | 54% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
Features:

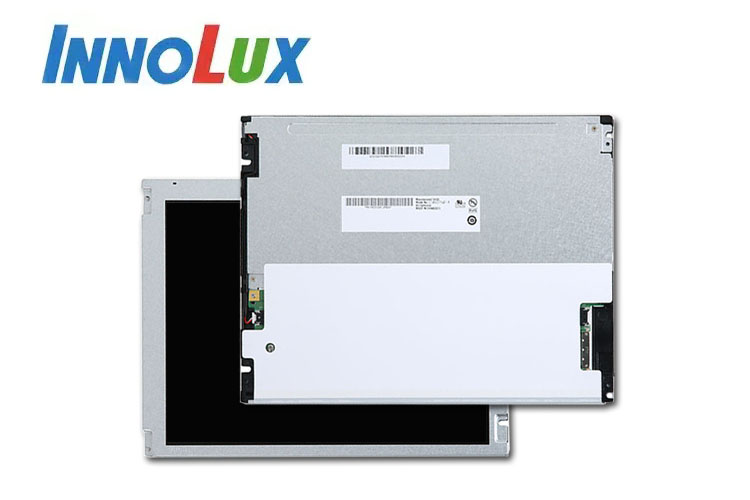

- Product Name: INNOLUX LCD Display
- Wide Viewing angle(RLUD): 89/89/89/89
- High Resolution
- Long LED Lifetime (hrs): 50K
- Interface: LVDS 30
- Smart Medical application
- Smart retail Application
- Industrial TFT
One of the standout features of the INNOLUX LCD Display is its long-lasting LED lifetime, which can last up to 50,000 hours. This means that you can enjoy stable and consistent performance for years to come, even with prolonged use. This is a testament to the quality of Innolux panels and their commitment to producing top-notch displays.
This display's 1024*768 resolution also ensures that every detail is displayed with utmost clarity, making it perfect for various industrial and commercial applications.
Whether you need it for multimedia playback, data visualization, or as a vehicle LCD display, this display can deliver impressive performance and longevity.
Applications:
The INNOLUX G104XCE-LM1 LCD TFT Module is versatile and can be used in various applications, including but not limited to:
- Industrial Controls: This display is perfect for use in industrial control systems that require high precision and accuracy in visual display. It can withstand harsh industrial environments, making it ideal for use in factories, production plants, and other industrial settings.
- Medical Devices: With ANSI/AAMI ES60601-1-2 certification, this display is suitable for use in medical devices that require high image quality and clarity. Its wide viewing angle and high resolution make it ideal for use in medical imaging equipment and patient monitors.
- Gaming & Entertainment: The INNOLUX G104XCE-LM1 display can be used in gaming and entertainment systems that require high-quality displays with accurate color reproduction and fast response times.
- Retail Displays: This display can be used in retail displays, such as point of sale (POS) systems and digital signage, to create attractive and engaging displays that attract customers and increase sales.
Support and Services:
Our INNOLUX LCD Displays come with comprehensive technical support and services to ensure optimal performance and customer satisfaction. Our team of experienced engineers and technicians are available to assist with any troubleshooting or technical issues that may arise with your product.
We offer a range of services including installation, maintenance, and repair to keep your INNOLUX LCD Display operating at peak performance. Our team is also available to provide training and consultation to help you get the most out of your product.
In addition, we offer a warranty for our INNOLUX LCD Displays to provide peace of mind and protect your investment. Our warranty covers any defects in materials or workmanship for a specified period of time.
Packing and Shipping:
Product Packaging:
- INNOLUX LCD Display
- Protective foam packaging
- User manual
| Innolux G104XCE-LM1 Carton Details |
| Package Carton : | Amount | Net Weight | Carton Size (L*W*H) |
| 24 pcs / box | 13.1 Kgs | 490*350*320 mm |
